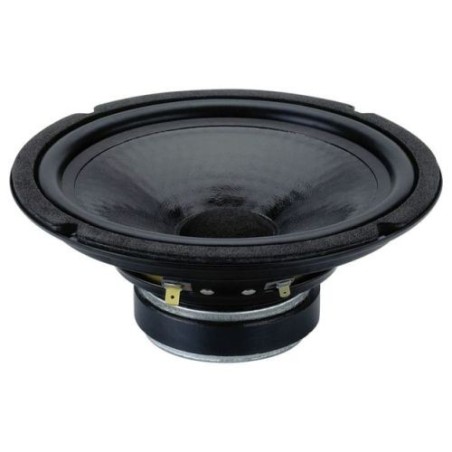

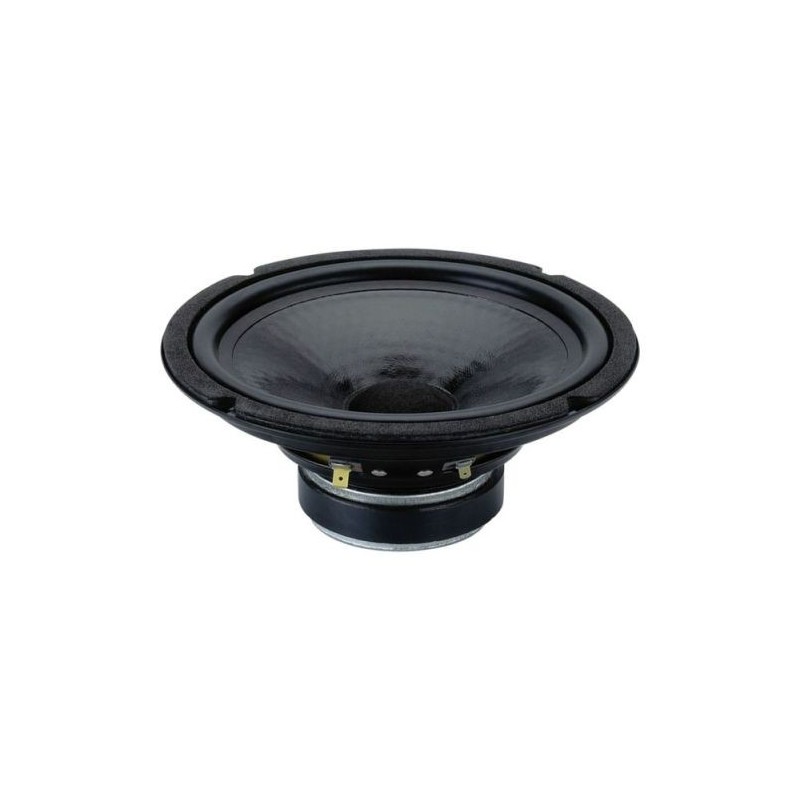

CIARE Woofer CW200Z 160w 200mm
43,00 €
Tasse incluse
Pagamento sicuro
Spedizione sicura e veloce
Assistenza Lunedì-Venerdì 9.00-12.30/16.00-19.30
Specifiche
Nominal Diameter
200 mm (8 in)
Nominal Power Handling
80 W
Sensitivity
93 dB
Voice Coil Diameter
32 mm (1.25 in)
Winding Depth
11 mm (0.43 in)
Impedenza nominale
4 Ω
Continuous Power Handling
160 W
Frequency Range
40 Hz - 40 Hz
Former Material
Aluminum
Magnetic Gap Depth
6 mm (0.24 in)
Parametri
Fs
49 Hz
Qes
0.71
Qts
0.53
Sd
214 cm² (33.17 in²)
Mms
17.43 g
Cms
0.6 mm/N
EBP
69 Hz
Re
3.5 Ω
Qms
2.17
Vas
38.3 dm³ (1.35 ft³)
Xmax
4 mm (0.16 in)
Bl
5.17 Tm
d
165 mm (6.5 in)
Design
Surround Shape
Rubber
Recommended Loading
Sealed box
Recommended Enclosure
50 dm³ (1.766 ft³)
Cone Material
Doped cellulose fiber
Informazioni di montaggio e spedizione
Diametro totale
205.5 mm (8.09 in)
Baffle Cutout Diameter
185 mm (7.28 in)
Flange and Gasket Thickness
7 mm (0.28 in)
Bolt Quantity
4 pcs
Bolt Circle Diameter
194 mm (7.64 in)
Depth
84 mm (3.31 in)
Net Weight
1.14 kg (2.51 lb)
Basket Material
Steel
Bolt Diameter
5.5 mm (0.22 in)
SPEDIZIONE IN 4 GG LAVORATIVI
MADE IN ITALY
BY CIARE
CW200Z
